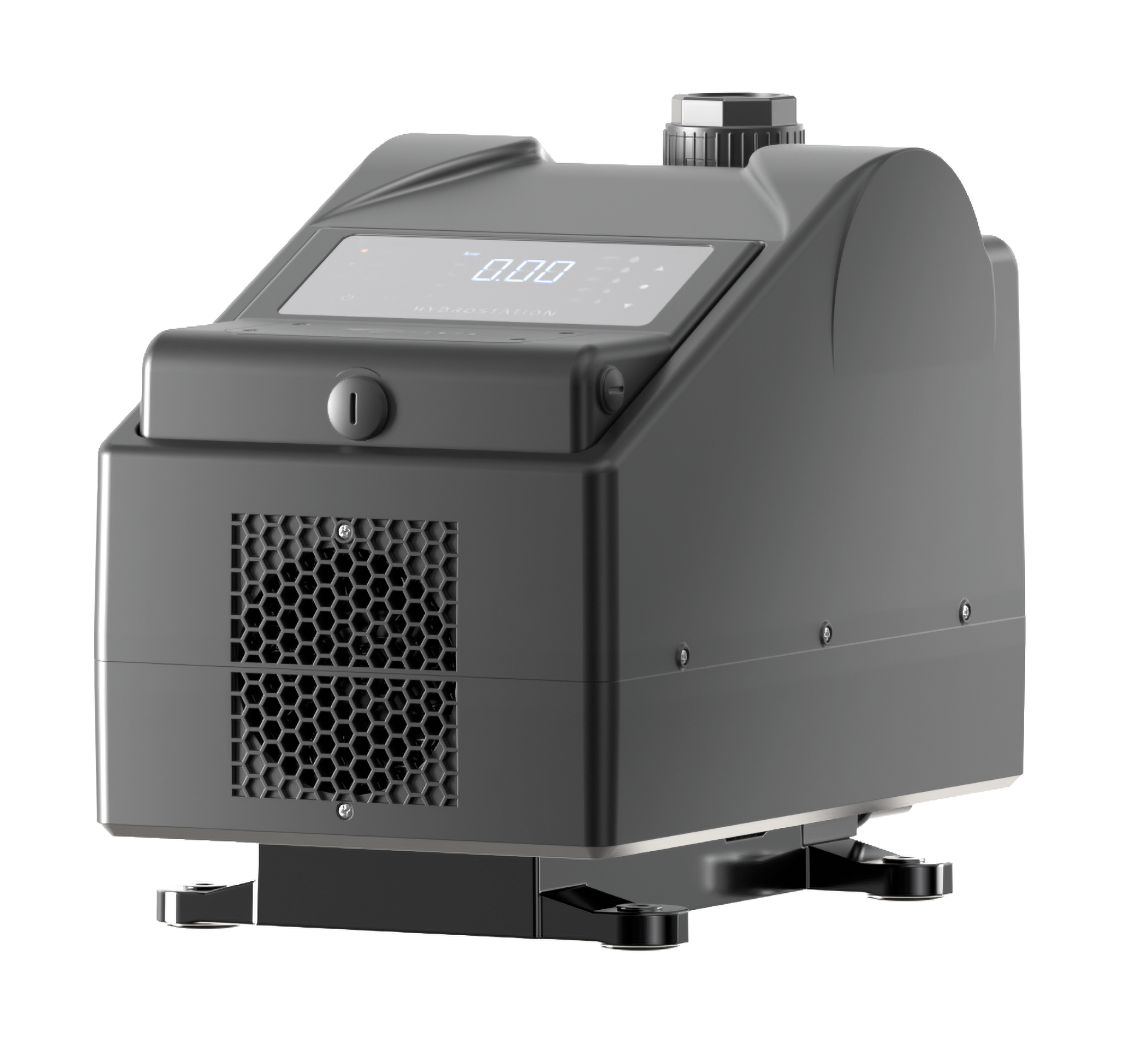

Hydrostation Self-Priming Water Pressure Pump
Hydrostation is EBARA Canada's pumping unit for domestic water pressurization.
Hydrostation is a compact, high-performance domestic water pressurization unit engineered to deliver constant pressure, quiet operation, and reduced energy consumption in small spaces. Powered by an advanced IE5 permanent magnet motor, it combines reliable performance with exceptional energy efficiency. Its self-priming capability supports a wide range of residential installations, while the intuitive, tool-free setup enables fast, easy integration into virtually any environment. Designed for modern home water management, Hydrostation brings together smart technology, ease of use, and dependable performance in one streamlined solution.
Located in the United States?
We offer these pumps only in Canada. If you are in the United States, please reach out to our sister company, EBARA Pumps America, for similar EBARA pumps and other EBARA products.
Features & Benefits
Hydrostation’s innovative fittings allow for fast, tool-free installation. Simply unpack, connect by hand, and the system is ready to operate; making setup effortless and efficient.
Hydrostation’s intuitive interface simplifies operation and control. The clear display allows quick access to all parameters; just set the working pressure, and the system does the rest.
With built-in Bluetooth® connectivity, Hydrostation can be monitored and adjusted remotely through the EBARA Hydrostation app; providing convenient, intuitive control from your smartphone or tablet. Available on the App Store and Google Play.

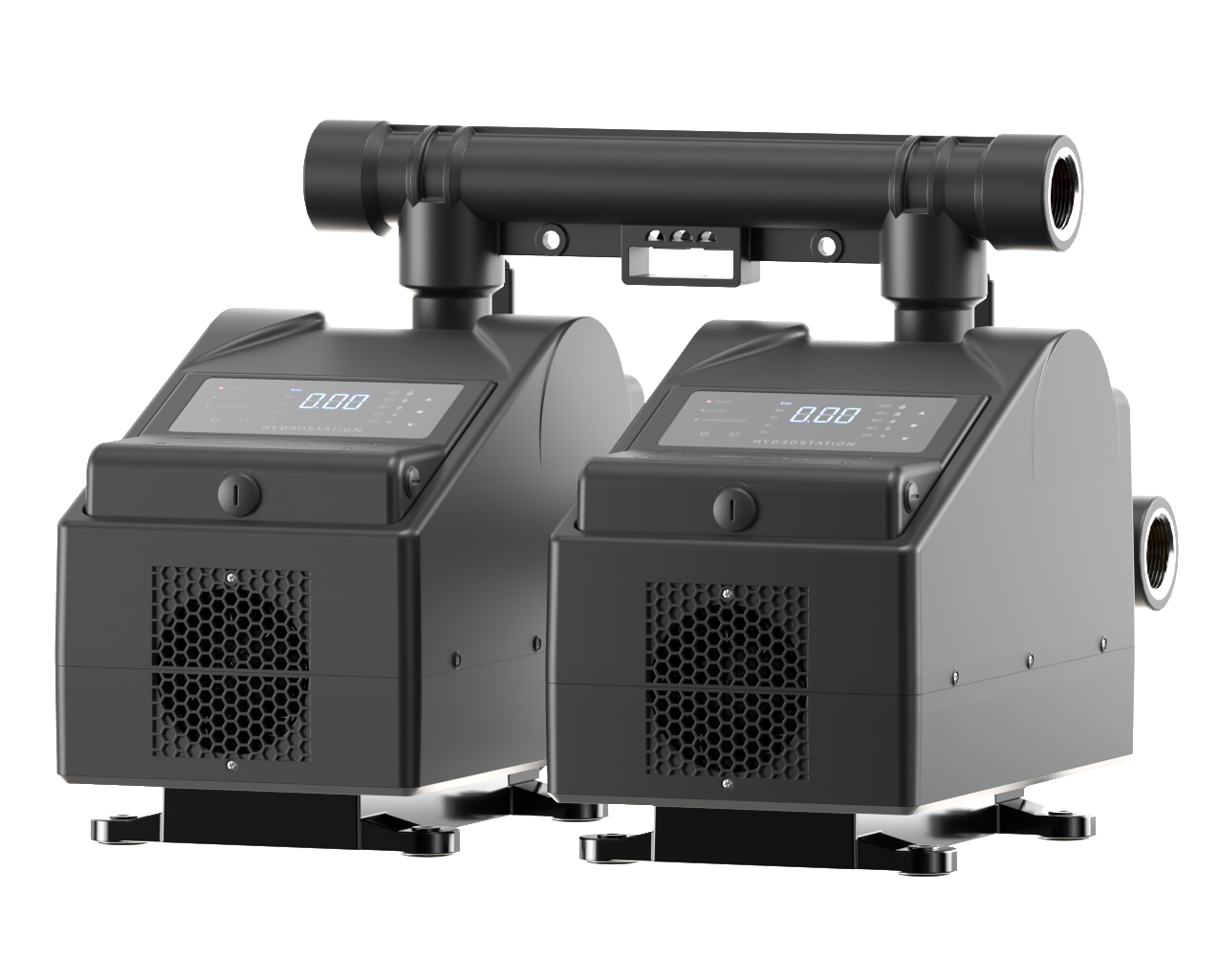

The Hydrostation Twin configuration doubles performance with the optional manifold kit. Easily connect two units to achieve higher capacity and maintain optimal pressurization; ideal for apartment buildings and multi-unit applications.
With a footprint up to 60% smaller than comparable systems, Hydrostation delivers outstanding performance in a remarkably compact design. Its space-saving construction allows for easy installation in tight areas without; compromising power, reliability, or efficiency.
Operating at just 43 dBA, Hydrostation delivers powerful performance with remarkably quiet operation. Its advanced design ensures minimal sound; ideal for residential and other noise-sensitive environments.
Hydrostation is designed for effortless installation and operation. No tools are required; making setup, connection, and commissioning quick, simple, and intuitive.
Hydrostation is engineered for maximum energy efficiency. Equipped with an IE5 ultra-premium efficiency motor, it delivers superior performance while minimizing power consumption; smart energy for a sustainable environment.
Industries & Applications
Specifications
| Parameter | Value |
| Type | Single and Twin Pump |
| Max Working Pressure | 10 bar (145 psi) |
| Max. Flow Rate | 5.6 m3/h (24.7 USgpm) |
| Max. Head | 60 m (197 ft) |
| Efficiency Class | IE5 |
| Sound Level | <43 dBA * |
| Max. Current Draw | 4.8 A(230 V) / 9.5 A (115 V) |
| Liquid Temperature | 5 - 45 °C (41 - 113 °F) |
| Ambient Temperature | 5 - 50 °C (41 - 122 °F) |
| Pipe Connections | 2.54 cm NPT (1”) |
| Enclosure Rating | IP65 and Nema 4 |
| *At optimal operating conditions |
Pump Configurations
The Hydrostation offers two configurations to double performance:
- Single: Singular pump configuration for optimal performance in small spaces.
- Double: Add the optional manifold kit to easily connect two units for higher capacity and optimal pressurization.

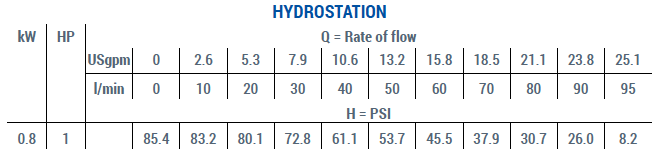

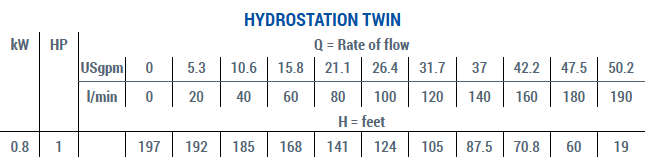

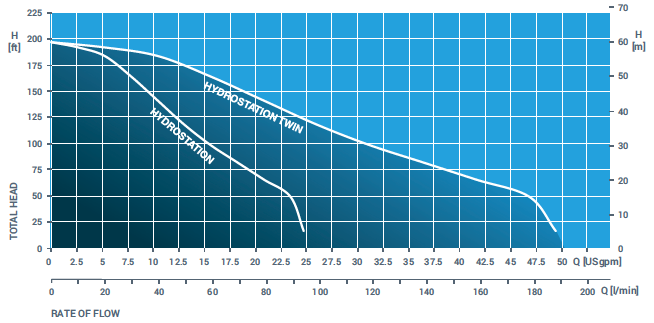

Flow Rates
Additional Resources
Ready to Get Started?
Our team provides the most complete and comprehensive portfolio of rotating equipment solutions - mixers and pumps - for your application. We are your perfect process partner.
Located in the United States?
These pumps are sold in Canada, but US companies can order similar products through our sister company, EBARA Pumps America Corporation (EPAC).
