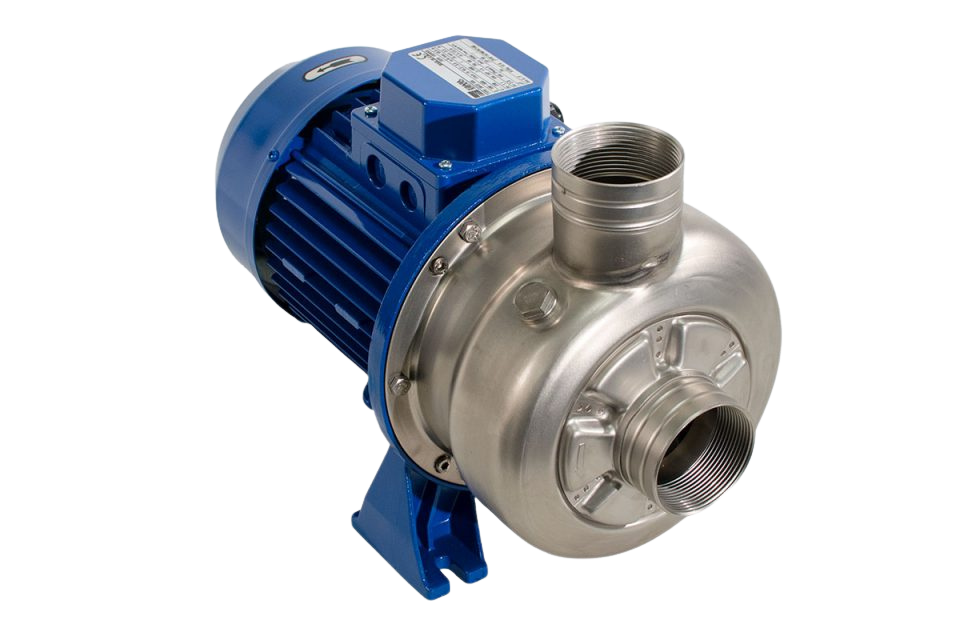

DWO Open-Impeller Centrifugal Pump
The EBARA DWO Open-Impeller Centrifugal Pump is engineered for reliable handling of liquids containing suspended solids or impurities. Designed for applications requiring high efficiency, durability, and easy maintenance, the DWO combines the advantages of an open impeller with a corrosion-resistant stainless-steel build.
This robust, close-coupled pump is ideal for industries such as food processing, beverage production, and water reclamation, where reliable flow and consistent performance are essential.
PRINCIPLE OF OPERATION
The DWO operates as an open-impeller centrifugal pump, efficiently transferring liquids that may contain suspended solids up to ¾″ in diameter (spherical).
The open impeller design reduces the risk of clogging and allows for smooth passage of solids-laden fluids, making it well-suited for handling dirty or viscous liquids. Its top centerline discharge ensures effective self-venting, while the close-coupled motor configuration minimizes alignment issues and simplifies installation.
A back pull-out construction allows servicing of the impeller and mechanical seal without disturbing connected piping, reducing downtime and maintenance costs.
Located in the United States?
We offer these pumps in Canada, but US companies can order the same products through our sister company, EBARA Pumps America Corporation (EPAC).
Features & Benefits
Handles liquids containing suspended solids and impurities up to ¾″, minimizing clogging and improving reliability.
Saves space and simplifies both installation and maintenance
Provides long service life in demanding or corrosive environments.
Enables quick servicing of the impeller and mechanical seal without removing suction or discharge piping.
Ensures self-venting and reduces stress or misalignment from piping loads.
Reduces energy consumption and operating costs.
Available in configurations for standard, high-temperature, and chemical-duty applications.
Fitted with EBARA-manufactured TEFC or IEC motors for durability and consistent output.
Industries & Applications
The DWO is ideal for processes involving slightly dirty or solids-laden liquids where stainless-steel performance, ease of maintenance, and compact design are essential.
- Municipal Wastewater
- Commercial
- Industrial
The DWO is ideal for processes involving slightly dirty or solids-laden liquids where stainless-steel performance, ease of maintenance, and compact design are essential.
Common Applications
- Beverage processing and bottle washing
- Cooling systems and scrubbers
- Dirty liquid handling
- Food and pharmaceutical processing
- OEM equipment integration
- Paint plants and parts washers
- Spray and cleaning systems
- Water reclamation and treatment
Specifications
| Parameter | Value |
| Type | Open-impeller centrifugal pump |
| Impeller Type | Open impeller – handles solids up to ¾″ (spherical) |
| Material | Stainless steel (wetted components) |
| Suction/Discharge Connections | NPT threads / hose-barb connections |
| Power Range | Up to 5.5 HP |
| Flow Range | Up to approximately 300 US gpm |
| Head Range | Up to 70 ft |
| Seal Options | Standard, high-temperature, or chemical-duty mechanical seals |
| Motor Type | TEFC or IEC motors (EBARA manufactured) |
| Mounting | Close-coupled, horizontal configuration |
Pump Configurations
The DWO series is offered in a range of configurations and options to suit various system requirements:
- Model Variants
Available in multiple sizes (e.g., DWO 1506, DWO 2006, DWO 3006, DWO 5506) with power ratings up to 5.5 HP. - Mounting & Orientation
Compact, close-coupled configuration for easy horizontal installation; designed to save space in tight system layouts. - Seal Options
Standard mechanical seals and O-rings are available for clean-water service, with optional high-temperature and chemical-duty seal configurations for specialized applications. - Motor Options
Equipped with TEFC motors or IEC motors manufactured by EBARA Corporation — ensuring reliability and global compatibility. - Connections
NPT threaded connections and hose-barb options for flexible integration into existing systems.
Key Differentiators
- Open impeller design for solids handling and reduced clogging
- Compact and service-friendly construction with back pull-out access
- All stainless steel wetted components for superior corrosion resistance
- High-efficiency hydraulic performance reduces operational costs
- Motor options from EBARA ensuring reliability and global standards compliance
Ready to Get Started?
Our team provides the most complete and comprehensive portfolio of rotating equipment solutions - mixers and pumps - for your application. We are your perfect process partner.
Located in the United States?
These pumps are sold in Canada, but US companies can order the same products through our sister company, EBARA Pumps America Corporation (EPAC).
Contact a Representative
EBARA’s DWO Open-Impeller Centrifugal Pump offers reliable performance and easy maintenance for applications requiring solids-handling capability and corrosion resistance. Whether for food, beverage, or industrial systems, the DWO is engineered for efficiency, durability, and peace of mind.
