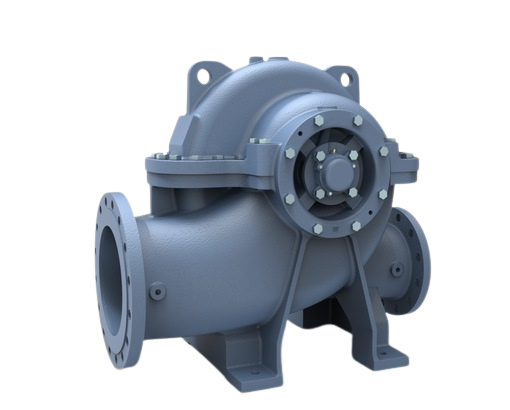

CB Horizontal Split Case Pump
The EBARA CB Horizontal Split Case Pump is a single-stage, double-suction centrifugal pump engineered for reliable, high-capacity water transfer and circulation. Designed for efficiency and simplicity, the CB delivers robust hydraulic performance with a compact footprint and easy maintenance features.
With a flow capacity up to 16,375 gpm and heads reaching 492 ft, the CB series delivers consistent, energy-efficient operation across municipal, industrial, and building service applications — from water distribution and process cooling to HVAC and irrigation systems.
PRINCIPLE OF OPERATION
The CB is a single-stage, double-suction centrifugal pump with a horizontally split casing, allowing easy access to internal components for inspection and maintenance without disturbing the piping or motor alignment.
The double-suction impeller design balances axial thrust, improving bearing life and minimizing vibration. Water enters the impeller from both sides, ensuring smooth hydraulic performance and efficient energy transfer.
This configuration makes the CB ideal for continuous-duty applications that require high flow, stable pressure, and reliable operation under varying system demands.
These pumps are only available in Canada.
Features & Benefits
Delivers optimized hydraulic performance, reducing energy consumption and operational costs.
The horizontal split configuration minimizes footprint requirements while maximizing flow capacity.
Horizontally split casing and accessible components allow fast inspection and servicing without dismantling piping.
Cast-iron casing and stainless-steel impeller provide corrosion resistance and long service life in demanding environments.
Shielded bearings ensure smoother operation and longer bearing life.
Supports flow rates up to 16,375 gpm (3719 m³/hr) and heads up to 492 ft (150 m) — ideal for large-scale water movement systems.
Double-suction impeller balances hydraulic forces, minimizing shaft deflection and vibration.
Industries & Applications
The CB Split Case Pump is designed for high-capacity water movement in public utilities, industrial processes, and commercial building systems.
Specifications
| Parameter | Value |
| Type | Single-stage, double-suction, horizontal split case pump |
| Capacity | Up to 16,375 US gpm (3719 m³/h) |
| Head Range | Up to 492 ft (150 m) |
| Power Range | 7.5 – 1,000 hp (5.5 – 750 kW) |
| Working Pressure | Max 232 psi (16 bar) |
| Discharge Size | Up to 16 in (400 mm) |
| Liquid Temperature Range | 32 – 176 °F (0 – 80 °C) |
| Casing Material | Cast Iron – FC250 |
| Impeller Material | Stainless Steel – SS304 (SCS13) |
| Shaft Seal | Mechanical Seal |
Pump Configurations
The CB series is offered in multiple configurations to meet system and installation requirements:
- Single-Stage Split Case Design
Simplifies maintenance and provides quick access to the impeller and bearings without disconnecting suction or discharge piping. - Flange Options
Standard ANSI-compatible flanges with discharge sizes up to 16″ (400 mm). - Seal Options
Standard mechanical seal construction for reliable, leak-free performance across a wide range of water temperatures. - Motor and Drive Flexibility
Can be coupled to electric motors, diesel engines, or turbines depending on installation needs.
Key Differentiators
- High-capacity, high-efficiency design for demanding municipal and industrial systems
- Horizontal split case simplifies maintenance and minimizes downtime
- Double-suction impeller balances thrust and ensures vibration-free operation
- Robust construction for long-term durability and consistent performance
- Flexible drive configurations — electric, diesel, or turbine
