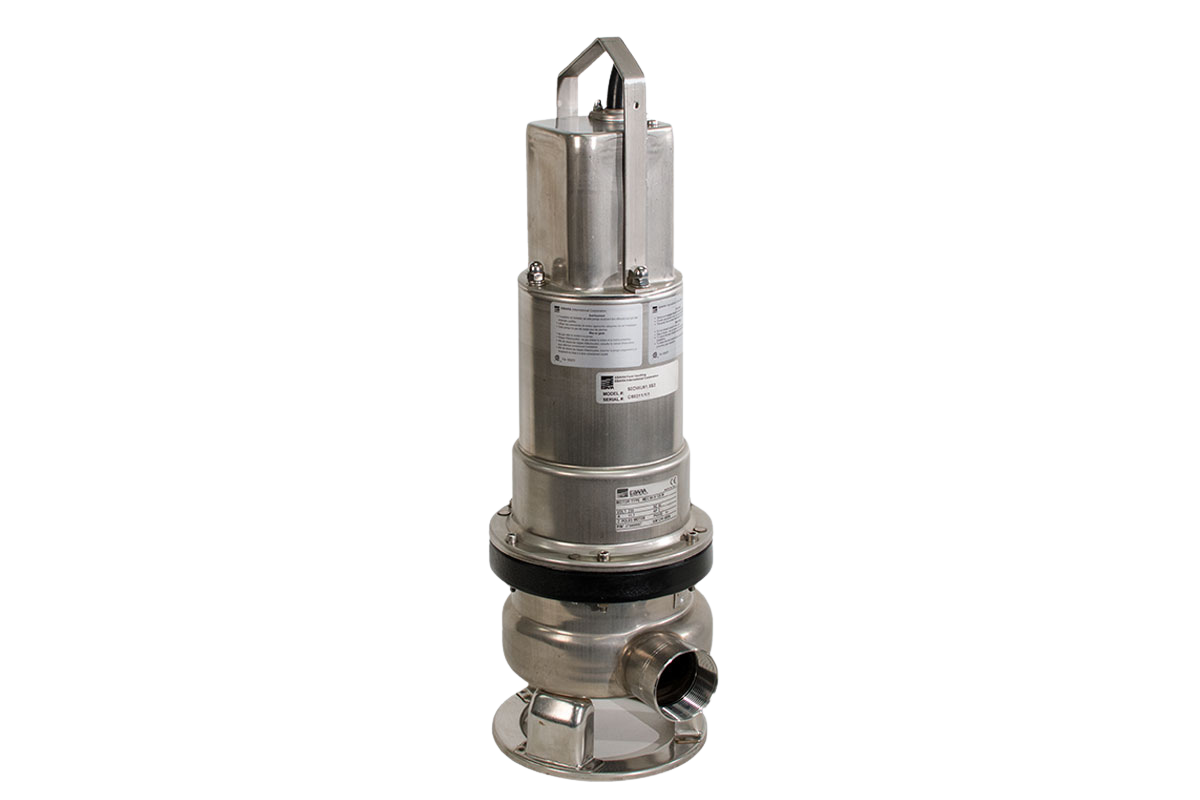

DWU/DWXU Dominator Sump & Effluent Pump
The EBARA DWU and DWXU Dominator Series submersible sump and effluent pumps are engineered for durability, reliability, and efficiency in demanding residential, commercial, and light industrial applications. Constructed from corrosion-resistant 304 stainless steel, these pumps deliver long-lasting performance while handling solids up to 2" in diameter.
Available in both single and three-phase configurations, the DWU / DWXU series is designed for continuous duty and dependable operation in sump, wastewater, and drainage systems. With automatic or manual models, these pumps offer flexible installation options to meet a variety of site requirements.
PRINCIPLE OF OPERATION
The DWU and DWXU are submersible centrifugal pumps designed for handling wastewater, effluent, and liquids containing suspended solids. Each pump uses either a single-channel or vortex impeller, depending on the model, to efficiently move fluids while reducing clogging and wear.
The motor is a 2-pole, continuous-duty submersible type equipped with Class F insulation for thermal protection. An integrated double mechanical seal with Viton™ elastomers prevents leakage and protects internal components, while shielded, pre-lubricated ball bearings (rated for 50,000 hours) ensure long service life and smooth operation. These pumps can operate fully submerged and are available in automatic (float switch) or manual configurations for flexibility in application.
Located in the United States?
We offer these pumps in Canada, but US companies can order the same products through our sister company, EBARA Pumps America Corporation (EPAC).
Features & Benefits
304 stainless steel body resists corrosion for reliable performance in harsh environments.
Designed to pass spherical solids up to 2" (50 mm) in diameter.
2-pole motor with Class F insulation supports extended run times and efficient operation.
Available with either a mechanical float switch or a manual start configuration.
Built-in motor protection against overheating and voltage irregularities.
Provides superior sealing integrity and resistance to chemical and temperature exposure.
Shielded, pre-lubricated ball bearings rated for 50,000 hours of continuous operation.
Delivers up to 238 US gpm (900 lpm) and heads up to 74 ft (23 m).
Optional Quick-Disconnect Coupling system simplifies removal for inspection or service.
Key Differentiators
- Durable 304 stainless-steel construction for corrosion resistance and long life
- Handles up to 2" solids with vortex or single-channel impeller design
- Thermally protected, continuous-duty motor for reliable operation
- Automatic and manual models to fit any installation
- Optional QDC system for easy removal and maintenance
- CSA-certified design meeting North American standards
Industries & Applications
Specifications
| Parameter | Value |
| Type | Submersible sump and effluent pump |
| Series | DWU / DWXU Dominator |
| Construction Material | 304 Stainless Steel |
| Solids Handling | Up to 2" (50 mm) spherical solids |
| Motor Type | 2-pole, continuous-duty submersible |
| Insulation Class | F |
| Fluid Temperature | 104°F (40°C) continuous, 140°F (60°C) intermittent |
| Power Range | ½ – 3 HP |
| Operation Modes | Automatic (float switch) or Manual |
| Seals | Double mechanical with Viton™ elastomers |
| Bearings | Shielded, pre-lubricated ball bearings (50,000 hours) |
| Discharge Options | NPT thread or 150 lb ANSI flange |
| Flow Range | Up to 238 US gpm (900 lpm) |
| Head Range | Up to 74 ft (23 m) |
| Certifications | CSA Certified |
Pump Configurations
The DWU / DWXU Dominator Series offers several configurations and optional accessories to adapt to diverse installation and performance needs:
- DWU Model Variant: Designed for general sump and wastewater applications with solids up to 2" (50 mm).
- DWXU Model Variant: Optimized for higher flow or effluent service, also rated for 2" solids handling.
- Automatic Models: Include a non-mercury mechanical float switch for level-controlled operation.
- Manual Models: For systems with external level control or custom operation.
- Discharge Options: NPT-threaded discharge or 150 lb ANSI flanged discharge for installation flexibility.
- Accessories: Quick-Disconnect Coupling (QDC) System available for simplified pump removal and maintenance.
- Certification: The DW(A)(F)U and DWX(A)(F)U models are CSA-certified, ensuring compliance with North American safety standards.
- Power Configurations: Available in single-phase and three-phase versions up to 3 HP.
